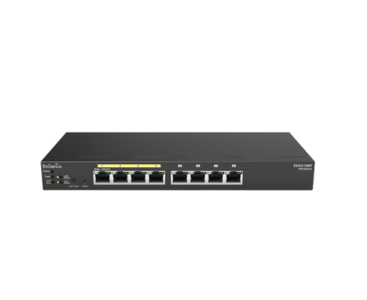

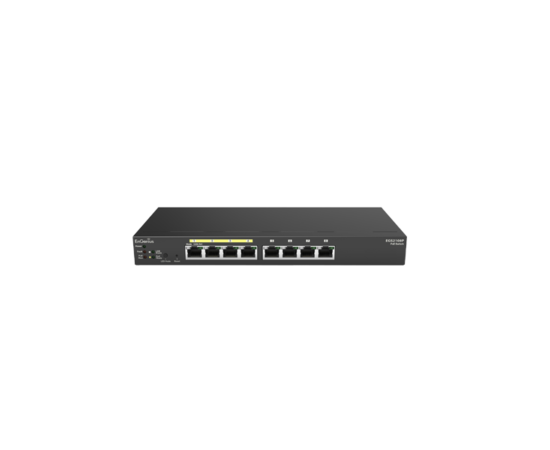

EnGenius 8-Port Gigabit Smart Switch including 4-Port PoE
Please sign in so that we can notify you about a reply
The EGS2108P enables office users to easily connect and supply power to Power over Ethernet devices such as IP cameras, IP phones, and Wireless Access Points on a network. Ports 1-4 of the EGS2108P support the IEEE 802.3af PoE protocol. Each of these four ports can supply up to 30 watts for a total PoE budget of 61 watts.
The switch supports IEEE 802.1p QoS, which automatically classifies and prioritizes compliant device traffic to ensure that time-sensitive data such as VoIP packets are forwarded without delay. In addition, the switch offers PoE Management on its PoE ports and also includes priority-based configuration.
| Standard Switching Capacity: 16Gbps Max. Forwarding Rate (64kBytes): 14.88Mpps Forwarding Mode: Store and Forward Packet Buffer memory: 512KB Flash Memory: 4Mbytes
Port Functions 8 10/100/1000Mbps Ports in the front panel
PoE Capability PoE standard: Port 1~4 Support IEEE 802.3af PoE Capable Ports: Port 1~4 can output up to 15.4W Power budget: 61.6 Watts
LED Indicator Device: Power LED x1 Fault LED x1 PoE Max LED x1 LAN Mode LED x1 PoE Mode LED x1 Copper Ports: LAN/PoE Mode, Link/Act | Environment & Mechanical Temperature Range Operating: 32 to 104°F / 0 to 40°C Storage: -40 to 158°F / -40 to 70 °C
Humidity (non-condensing) 5% – 95>#/p###
L2 Features Loopback Detection IGMP Snooping v1/v2 Port Trunking Port Mirroring: one to one and many to one Static MAC Address Dynamic MAC List Bandwidth Control 802.1Q VLAN Port-base VLAN Storm Control PoE Management BootP/DHCP Client Cable Diagnostic |
