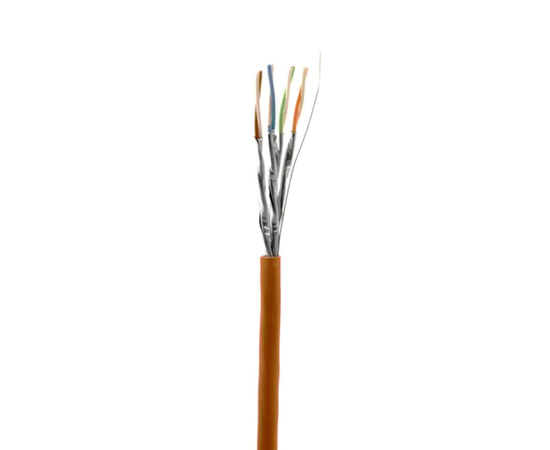

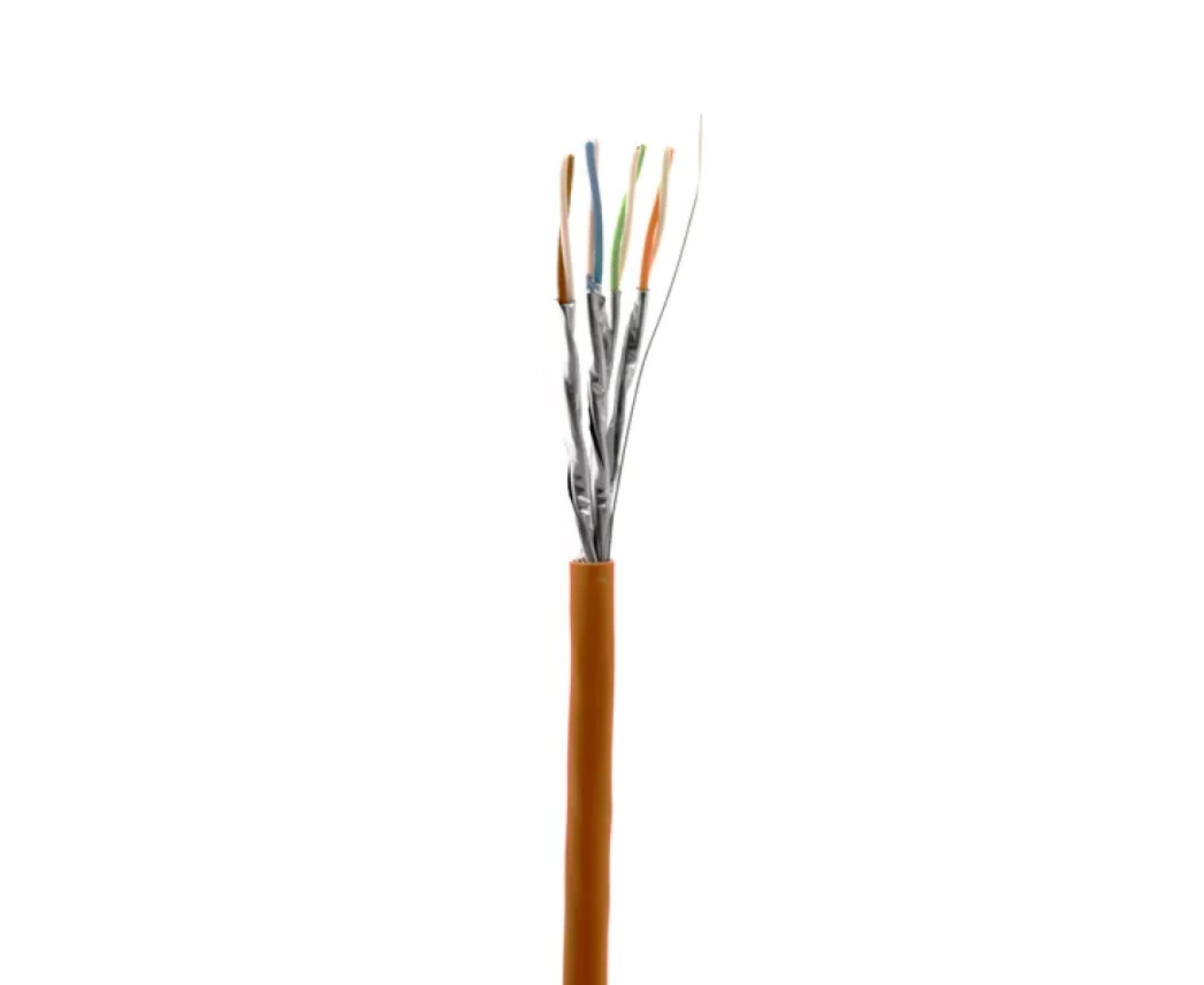

LANmark-10G U/FTP AWG23 Cat 6A LSZH Dca s2 d2 a1 Orange 500m reel

Ideal cable for 10GBase-T application

Full compliance to latest standards for Category 6A and Class EA

Guaranteed performance up to 500MHz

Individual pair shielding offering Alien Crosstalk immunity

Aginode ref: N10G.UF4-OD

Datasheet

PDF

Description

Standards

ANSI/TIA-568-C.2; EN 50173-1; EN 50288-4-1; IEC 61156-5; ISO/IEC 11801

Application

LANmark-10G cables are the ideal solution for a 10G Ethernet network. The range has been designed specifically to support the higher frequencies required for 10 Gigabit Ethernet, while maintaining full backwards compatibility with today's needs. LANmark-10G cables have individual pair shielding, in order to ensure immunity to Alien Crosstalk and other external interferences.

10Base-T Ethernet

100Base-TX Fast Ethernet

1000Base-TX Gigabit Ethernet

10GBase-T 10 Gigabit Ethernet

155 Mbit ATM

1.2 Gbit ATM

future Cat 6A and Class EA applications

Performance

With guaranteed performance to 500MHz, Aginode LANmark-10G cables meet the requirements of the International, European and American cable standards, including ISO/IEC 11801, IEC 61156-5, EN 50173, EN 50288 and TIA/EIA 568-C.2.

When used in combination with Aginode LANmark-10G connectors and LANmark-10G patch cords, the system supports the 10GBase-T applications as defined in IEEE 802.3an and meets the link and channel requirements for Category 6A and Class EA as defined in TIA/EIA 568-C.2 and ISO/IEC 11801.

Installation

The LANmark-10G cables have the advantage of offering equal dimensions and flexibility as the equivalent LANmark-6 screened cables with the same ease of installation and termination.

To support the correct set-up of hand held analysers for installation testing, the actual cable NVP value is given in the cable’s print legend.

Guarantees

Traceability codes on both cable and packaging ensure quality validation of the installed cable.

Installations with LANmark-10G cable and connectivity are qualified for a 25 year Aginode Link Warranty Certificate.

Electrical Performance LANmark-10G Cable

Characteristics

Construction characteristics

Colour

Orange

Outer sheath

LSZH

Type of cable

U/FTP

Dimensional characteristics

Approximate weight

49 kg/km

Conductor cross-section (AWG/KCMIL)

23

Diameter over insulation

1.32 mm

Nominal outer diameter (mm)

7.0 mm

Electrical characteristics

Mutual capacitance

45 nF/km

Characteristic impedance

100 Ohm

Max. transfer impedance at 30 MHz (Ohm/km)

120 Ohm/km

Max. DC resistance of the conductor at 20°C

80 Ohm/km

Mechanical characteristics

Maximum operating pulling force

100 N

Transmission characteristics

Skew

30 ns/100m

Attenuation Crosstalk Ratio, 250MHz

25 dB/100m

Nominal Velocity of Propagation (NVP)

82 %

Coupling attenuation at 30 MHz

>70 dB

Propagation delay, max. 100 MHz

536 ns/100m

Usage characteristics

Range

LANmark-10G

Gases corrosivity

IEC 60754-1; IEC 60754-2

Length

500 m

Operating temperature, range

-20...60 °C

Category

Cat. 6A

Flame retardant

IEC 60332-1

Smoke density

IEC 61034

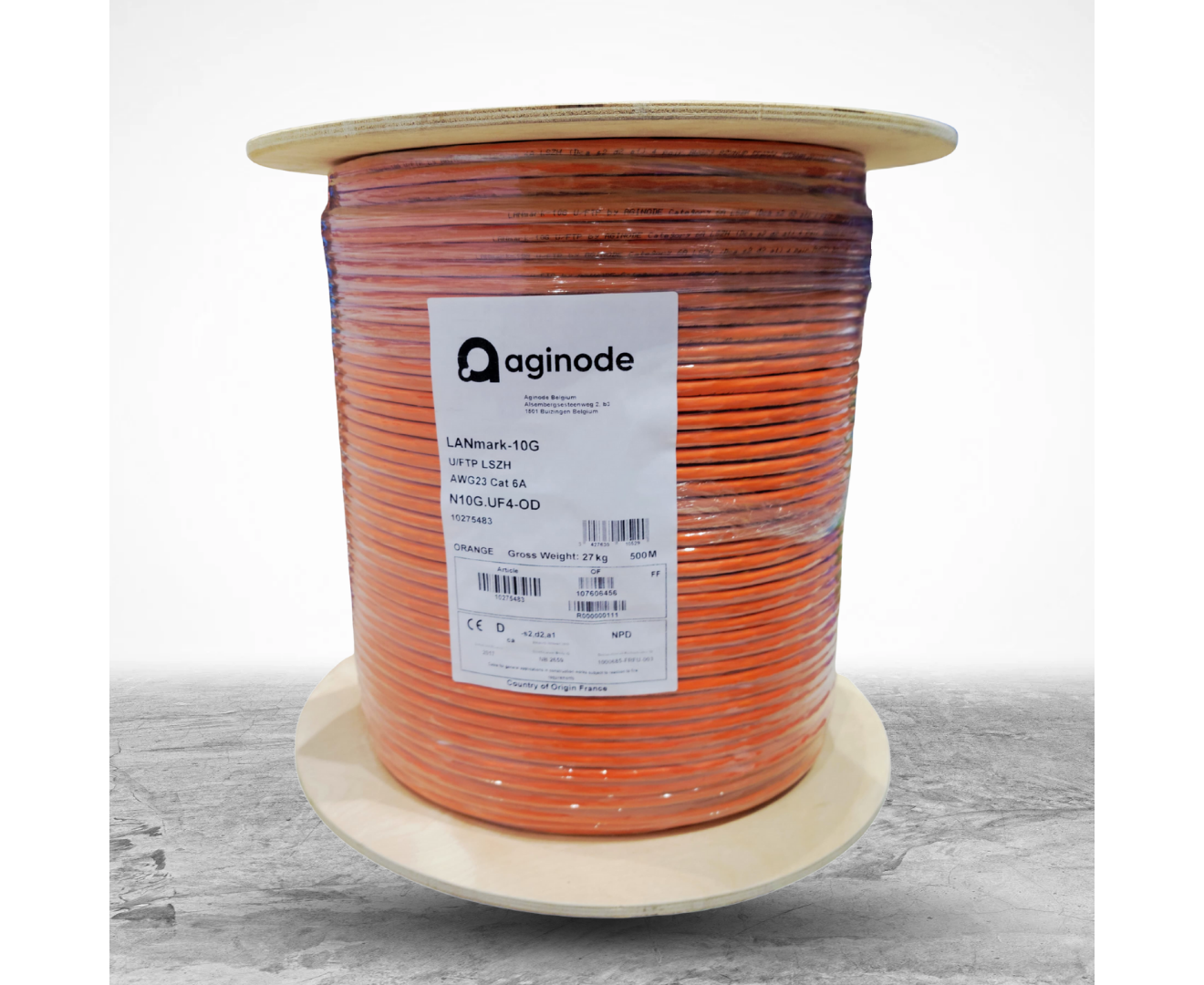

Packaging

Reel

Ambient installation temperature, range

0...50 °C

Minimum Bend Radius - During Installation (under Tension)

56 mm

Minimum Bend Radius - Installed

28 mm
