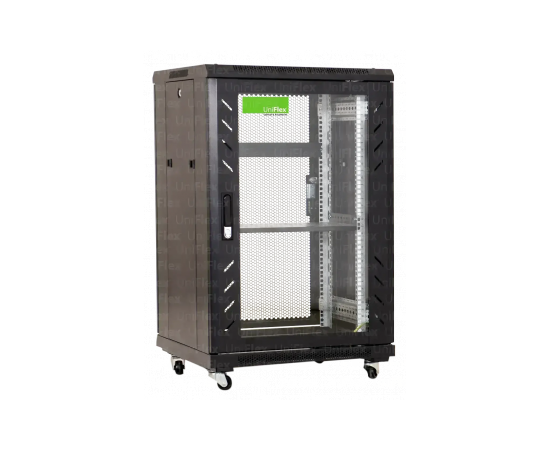

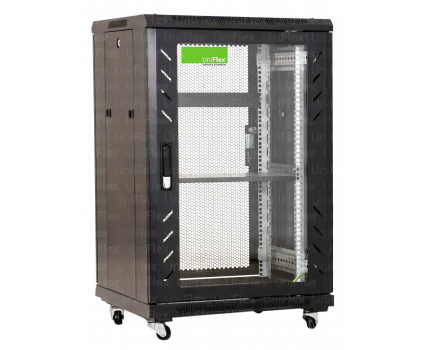

Uniflex 12u 600*450 mm with 1 fan with side locks

cabinets are feature-rich rack enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. These racks are multi-functional rack enclosures designed to meet current IT market trends and applications ranging from high-density computing and networking to broadcast and audio-video.

Dimensions

Cabinet Features

·         19” mounting angles

·         Front Glass Door with Lock (Tempered Glass)

·         Doors can be mounted to be opening from either side

·         Lock on the front door with duplicate keys

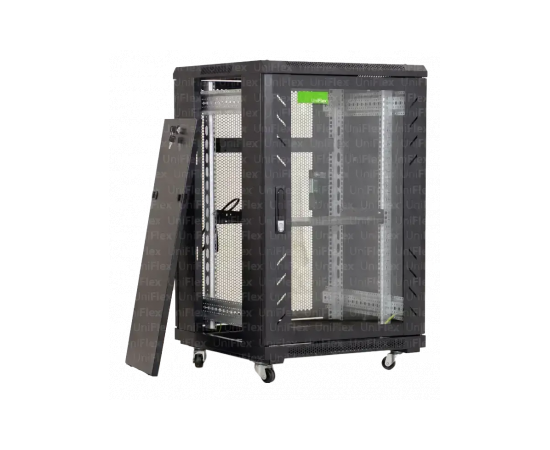

·         Removable side panels

·         Extra cage nuts provided

·         Earthing screws

·         Cooling fan Optional with effective ventilation

Technical Specifications

·         All steel construction

·         Frame made of 1.2 mm thick SPCC

·         Fixed shelves made of 1.2 mm thick SPCC (Optional)

·         Mounting angles made of 2.0 mm thick steel

·         Strong structure of individually fabricated components

·         Manufactured using CNC machine

·         Surface Finish: Matt Black Epoxy Powder Coated Paint (RAL 9005)

Cooling fan with effective ventilation (Optional)

·         Cooling Fan : Lower noise, Less than 48db, Air flow 50-110 CBM/H

Ordering Information
