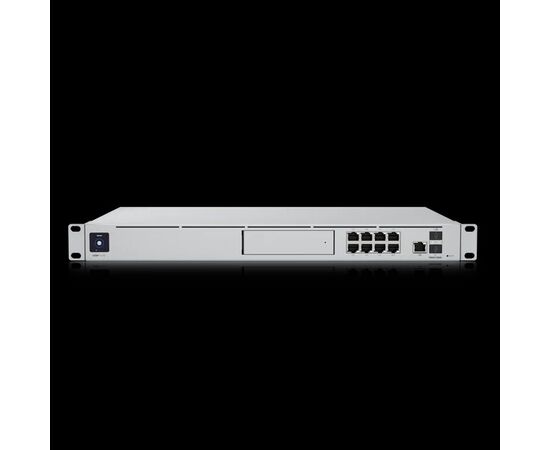

Ubiquiti Uni-Fi Dream Machine Special Edition (UDM-SE)

Features:

• Integrated 8-port PoE Switch
• 128 GB of integrated storage
• LAN ports: (8) GbE RJ45, (1) 10G SFP+
• WAN ports: (1) 2.5GbE RJ45, (1) 10G SFP+
• Threat management and traffic/client identification
• (1) 3.5" HDD bay for storing UniFi Protect recordings

Mechanical:

Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight 4.95 kg (10.91 lb)
Enclosure materials Aluminium CNC, SGCC steel
Mount material SGCC steel rack mount

Hardware:

Processor Quad-Core ARM® Cortex®
-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
IDS/IPS throughput 3.5 Gbps*
*MeasuredwithiPerf3
Max. power consumption (excluding PoE output) 50W
Power method (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 3.94A
Power supply AC/DC, Internal, 240W
Supported voltage range 100 to 240VAC
Managementinterfaces Ethernet
Bluetooth
Networking interfaces (1) WAN: 2.5 GbE RJ45 port
(8) LAN: 1 GbE RJ45 ports
SFP+ interfaces (1) WAN: 10G SFP+
(1) LAN: 10G SFP+
PoE interfaces (2) PoE+ IEEE 802.3at(pair A 1, 2+; 3, 6-)
(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)
Max. PoE wattage per port by PSE 802.3af 15.4W
Max. PoE wattage per port by PSE 802.3at 30W
Voltage range 802.3af mode 44 to 57V
Voltage range 802.3at mode 50 to 57V
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
LCM display (1) 1.3" touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: rmware upgrading
Button Factory reset

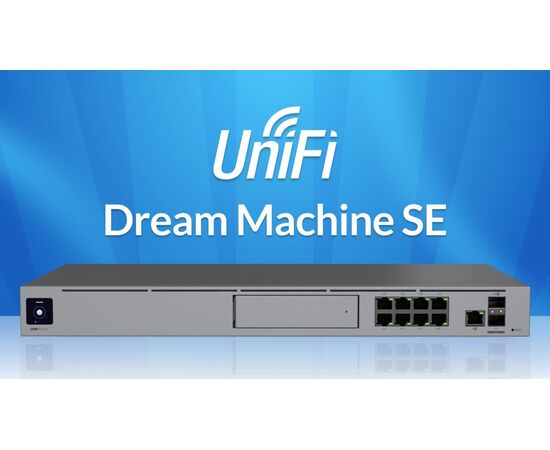

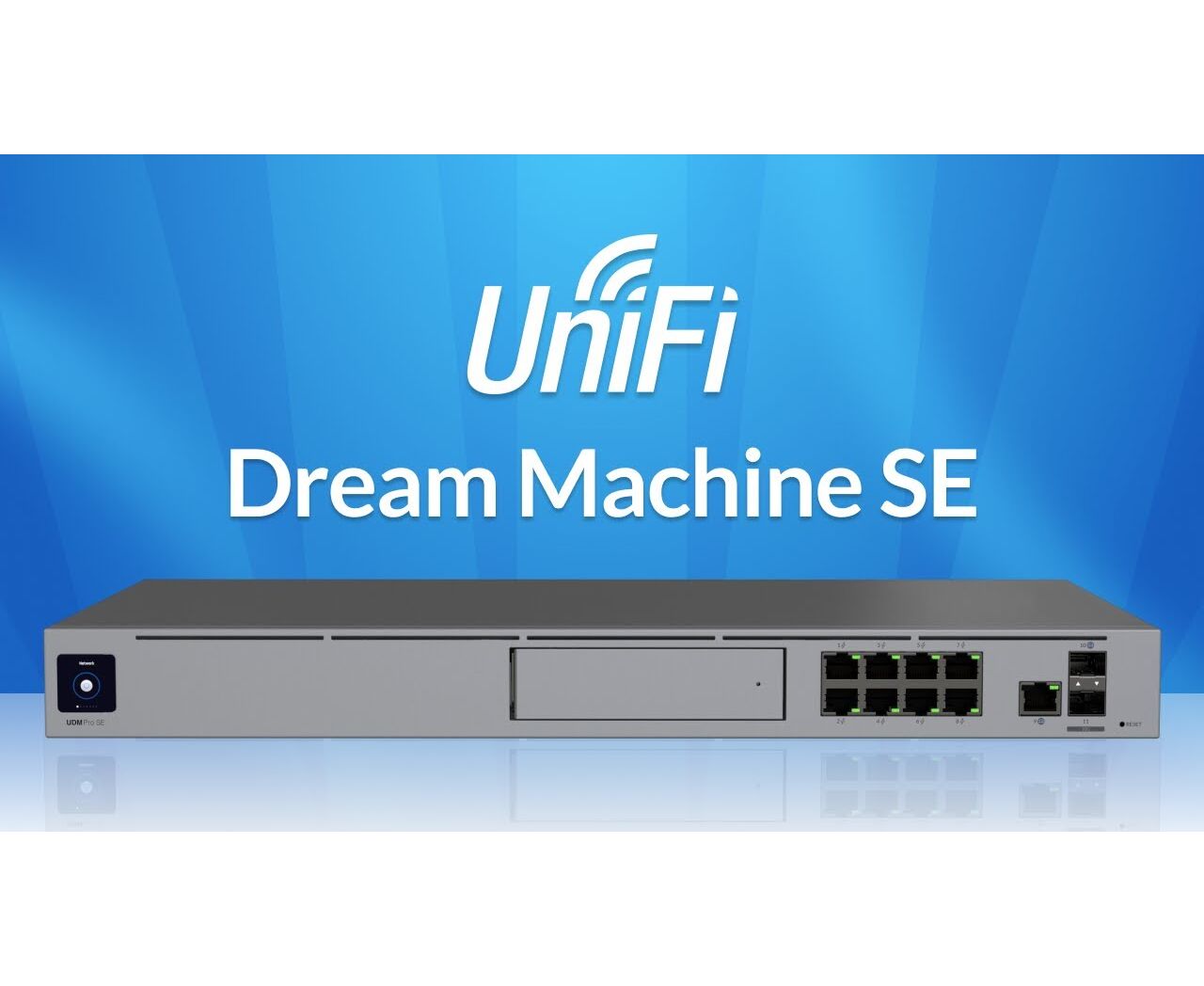

Dream Machine Special Edition
All-in-one router and security gateway with an integrated PoE switch and network video recorder.
The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home
and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity
(10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of
internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including
access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be
able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an
integrated Bluetooth radio that streamlines the initial setup and conguration process, which can be completed in
minutes with the UniFI Network application (web or mobile).
Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ui.com/support/warranty
©2022 Ubiquiti Inc. All rights reserved. Ubiquiti,Ubiquiti Networks,the Ubiquiti U logo,the Ubiquiti beam logo,UniFi,and UniFi Network are trademarks or registered trademarks ofUbiquiti Inc.in the
United States and in other countries. Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the USand/or elsewhere. All other trademarks are the property of their respective
owners.

LEDs:
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 - 95% noncondensing
Certications CE, FCC, IC
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready
