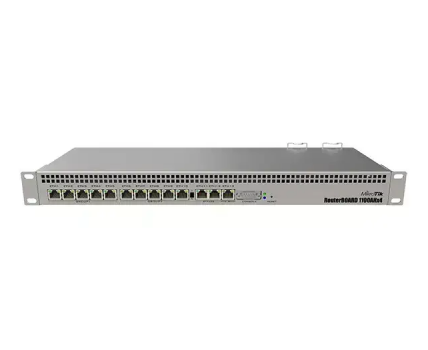

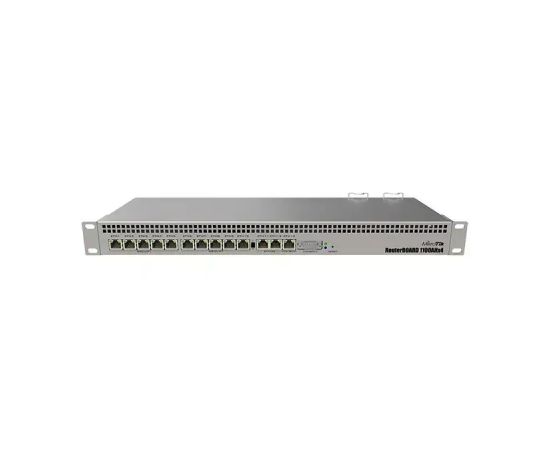

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Specifications
| Details |
|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400-1400-A0-E-1AN-8-C |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 444 x 148 x 47 mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
|
|
Powering
| Details |
|---|
| Max Power consumption | 20W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
Other
| Details |
|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes
|
